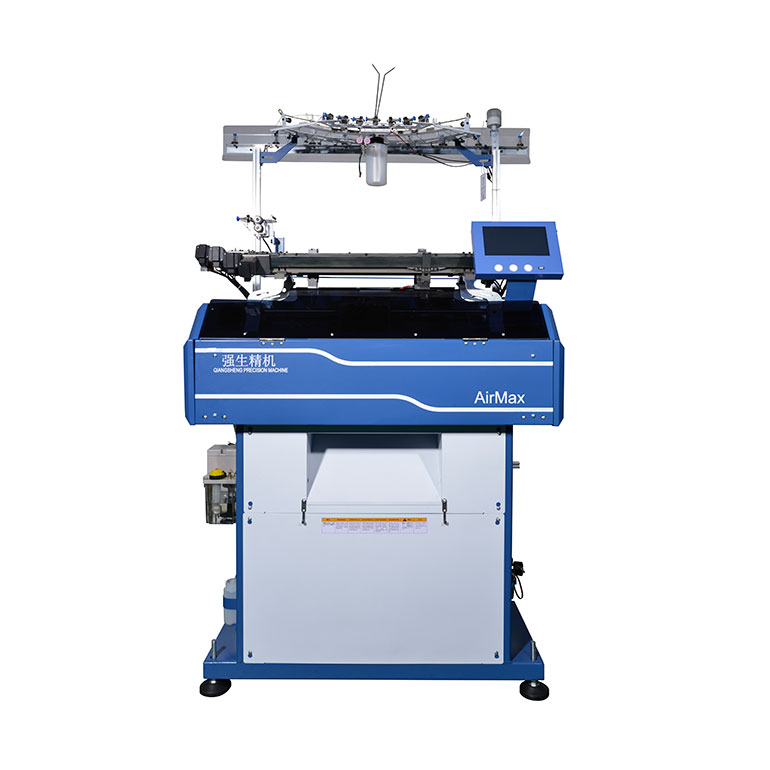

AirMax series computerized jacquard machine adopts Single carriage with single-system. These series are used digital technology to achieve the knitting functions of tuck, pick, and jacquard, apparent shape, hidden shape and other regular pattern knitting functions of glove machine. It can knit basic single or double jersey plain fabric, irregular multi-colors jacquard, cable structure patterns and so on. It is suitable for knitting gloves, socks, scarves and clothing accessories from real thread, spun silk, synthetic fiber, wool, acrylic, blended, yarn and other raw materials. The most advanced yarn feeder we called “self-running system”. It can automatically arrange 8 yarn feeders, and can automatically adjust the knitting position of the yarn feeders, which can effectively avoid the phenomenon of overlapping yarn feeders; at the same time, the system can realize multiple yarns merge weaving in the same line. It easily completes the weaving work of complex patterns such as intarsia and garment knitting, which greatly improves the production efficiency.
This model adopts Dahao system, equipped with small carriage and fast rotation technology, which greatly shortens the weaving time, and improves the working efficiency by about 25% compared with the traditional old machine (specifically, the efficiency will vary according to the width of the fabric).
Specifications
Gauge | 7G ， 10G,13G |
Knitting system | Single carriage |
Machine speed | The maximum speed is 1.6m/s |
Needle actuator | 6section electronic needle actuator |
Tight tuck | Tight tuck cam controlled by motor, achieve different tightness of the tight tuck. |
Yarn forward device | Yarn feeder and yarn storage device(optional),accurate control of yarn tension, to ensure the quality of the overall quality of the fabric |
Yarn feeder | 8 yarn carriers are arranged on the left and right sides |
Transmission system | Belt drive, AC servo motor control. |
Data input | Input and output patterns via USB, PC and Internet |
Protection system | Automatic stopping device if yarn broken, yarn knot, batching, striking, completion, overload, designated starting and stopping, program error |
Safety device | The whole machine cover to reduce noise and dust, the protecting cover is equipped with stopping sensor, emergency stopping and power off device |
Control system | 1. DA HAO system |
Model | Size | Dimension | Voltage | Power | Rotating Speed | Average Capacity | Average Power Consumption Per Set | Electricity Consumption Per Pair |
7G | M | 1100*900*1350 | 220V | 260W | 300r | 250 | 4.5 | 0.019 |
10G | M | 1100*900*1350 | 220V | 260W | 300r | 230 | 4.3 | 0.019 |
13G | M | 1100*900*1350 | 220V | 260W | 300r | 190 | 4.2 | 0.023 |
Shaoxing Qiangsheng Precision Machinery CO.,Ltd is a professional manufacturer of fully computerized glove knitting machine.
